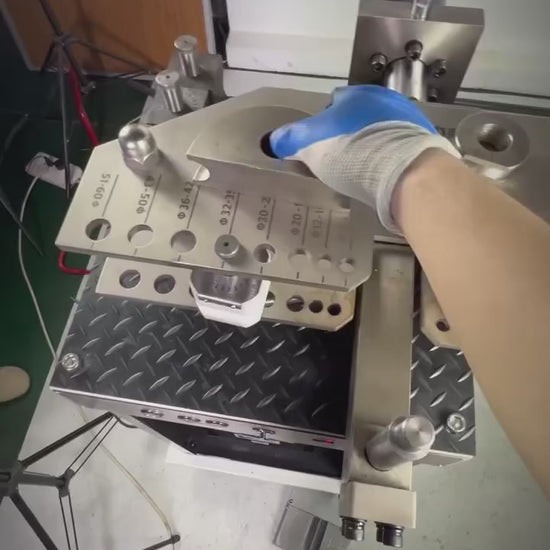

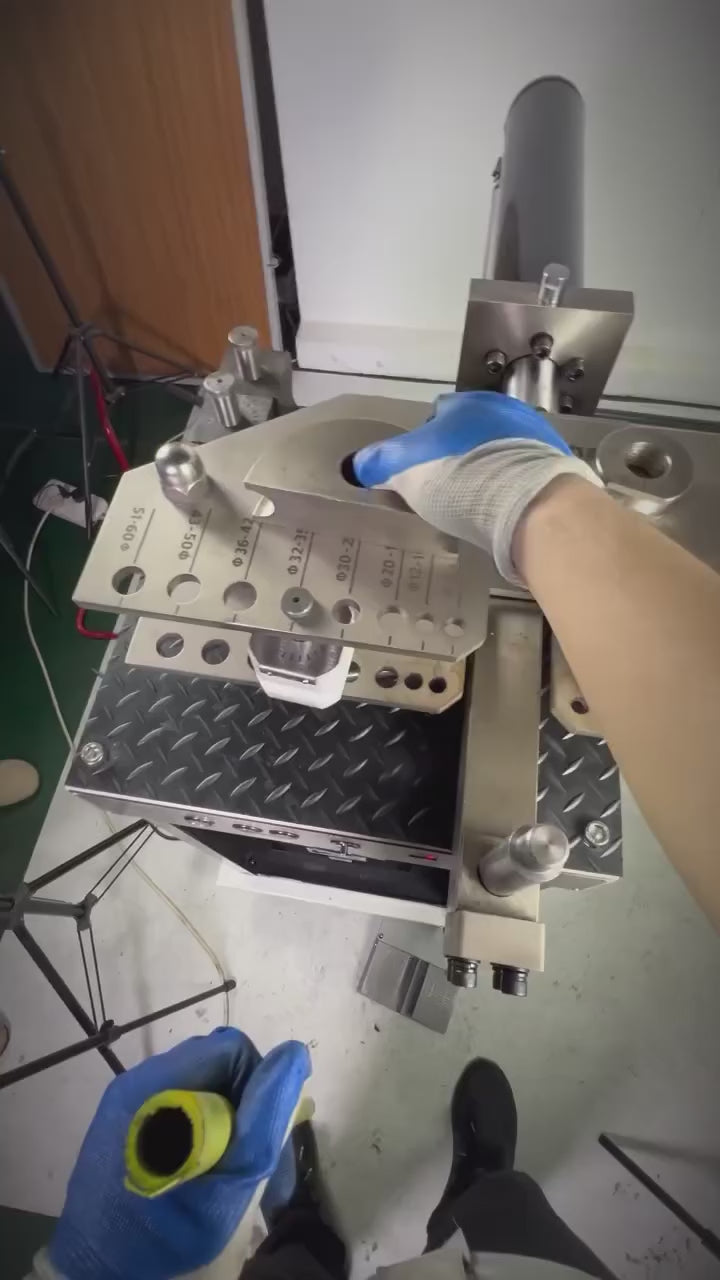

42Y operation video

The 42Y series Tube bending machine supports bending of tubes from 6MM to 42MM OD. Wall thickness ranges from  6X1 to 42X4. Supports angle real-time control and save one angle memory with accuracy compensation.

Angel bend : 0- 180 degree

quipment size: L×W×H 850mm×500mm×1000mm

Equipment weight: 100kg

Working pressure: 200bar

Nominal pressure: 250bar

Oil tank: about 8.5 liters

Hydraulic oil: HM46L

Flow rate: 2-5L/Min

Drive power: 1.5kW

Rated voltage: AC220 V 50hz
