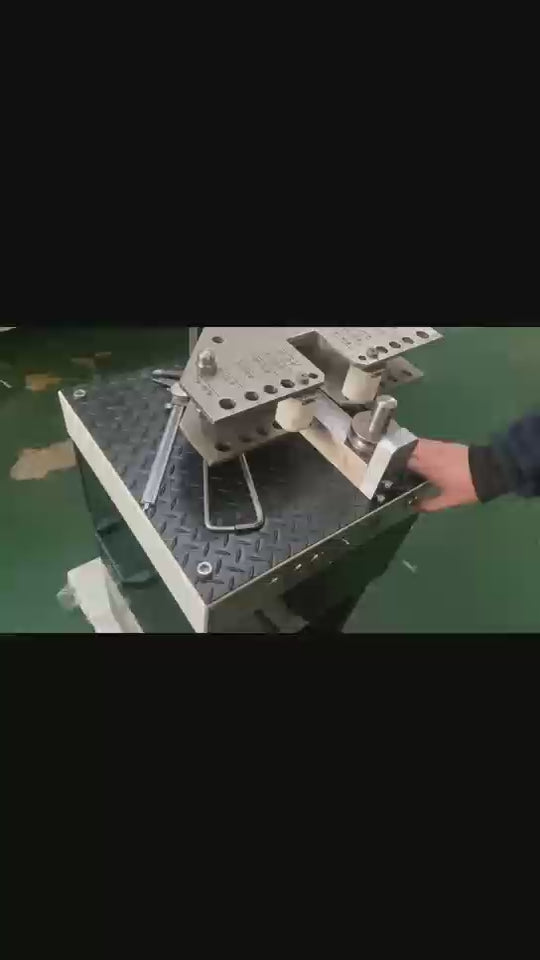

60Y Operation Video

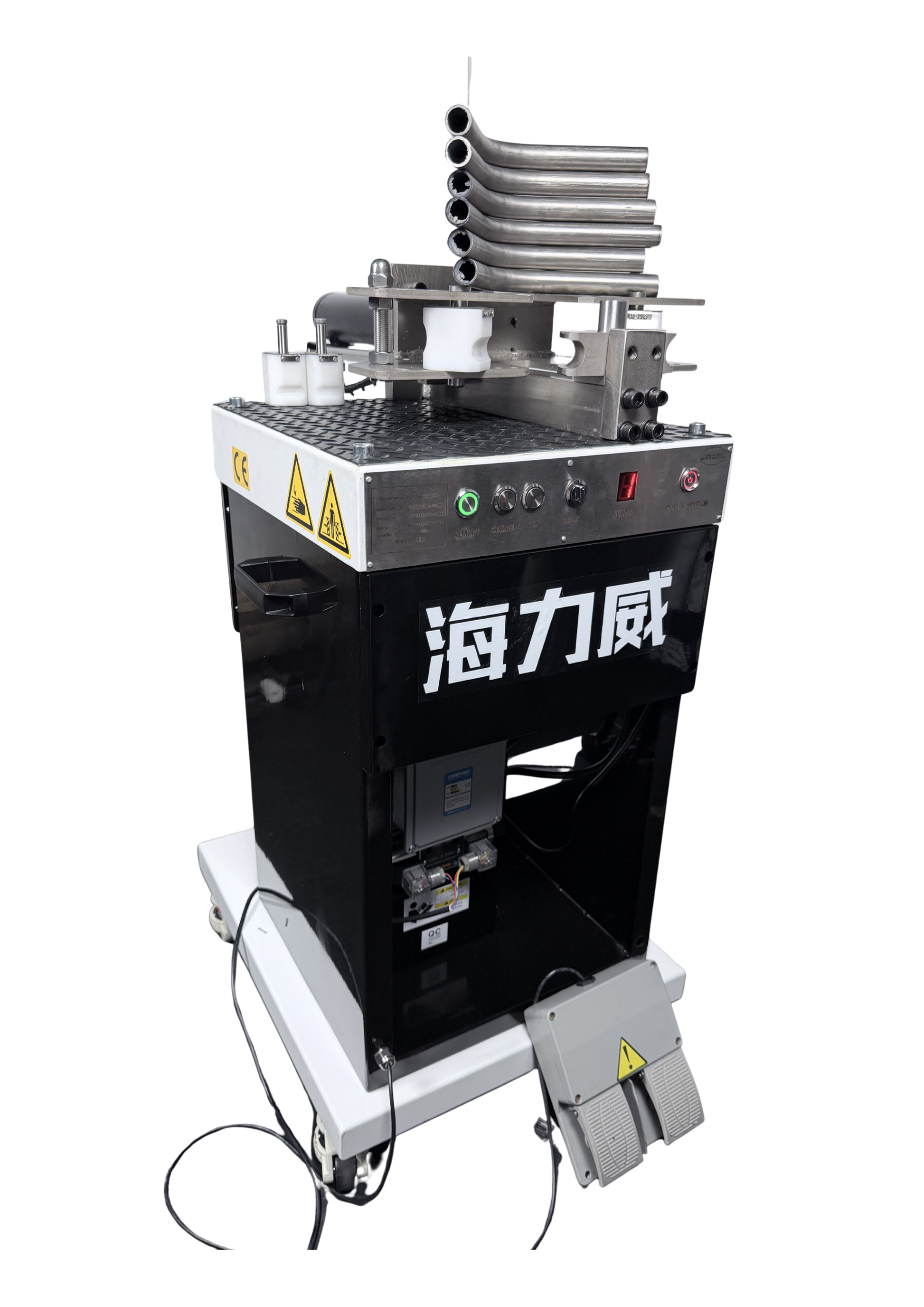

60Y series Tube bending machine support tube OD 6MM to 60MM bending. Wall thickness range 6X1 to 60X5. Support angle real-time control and can save one angle memory with accuracy compensation.

Angel bend : 0- 180 degree

quipment size: L×W×H 850mm×500mm×1000mm

Equipment weight: 120kg

Working pressure: 200bar

Nominal pressure: 250bar

Oil tank: about 8.5 liters

Hydraulic oil: HM46L

Flow rate: 2-5L/Min

Drive power: 1.5kW

Rated voltage: AC220 V 50hz
