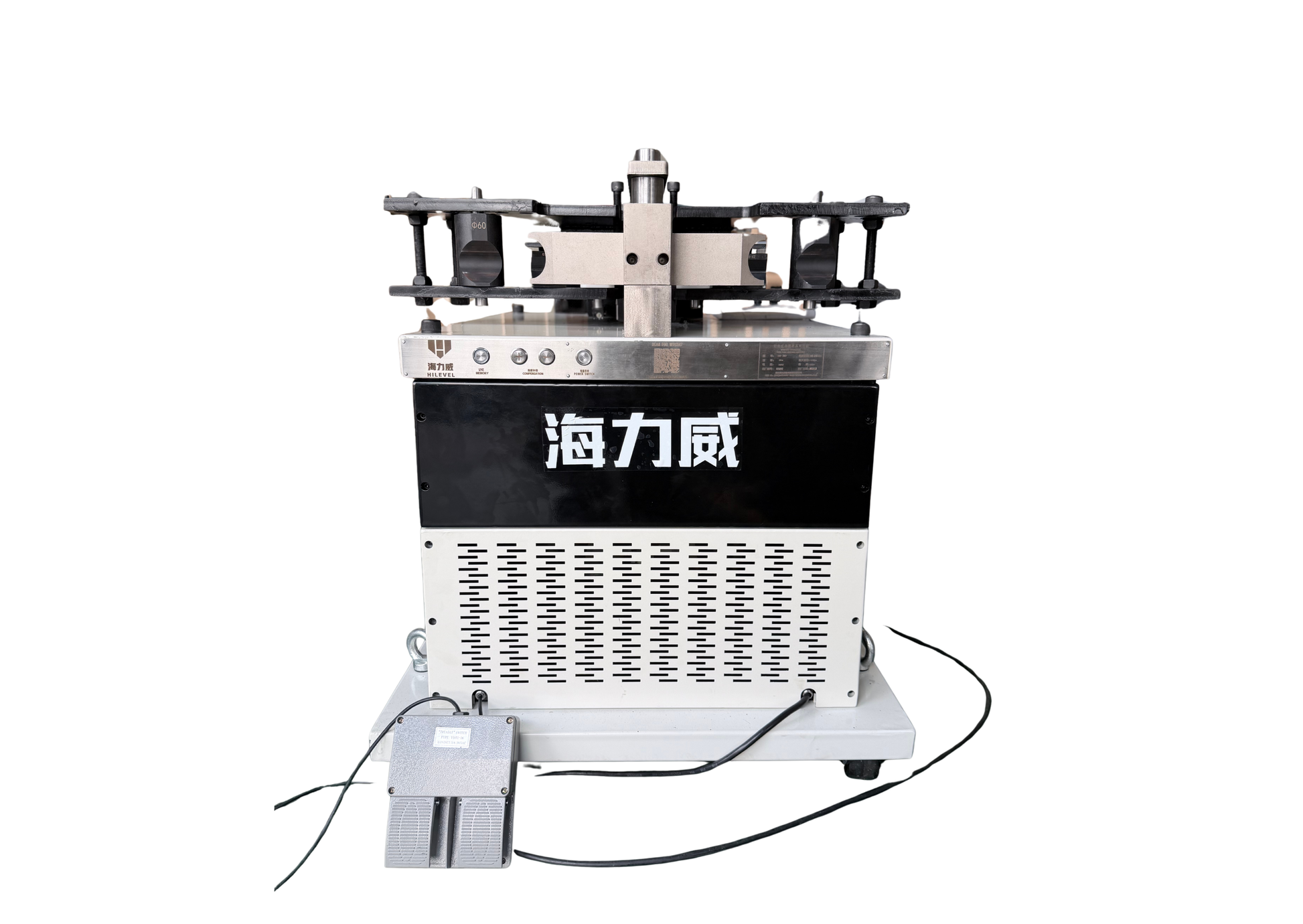

HW76Y MobileTubebender(with 1/2'' ,1'' ,1-1/4'' ,1-1/2'' ,2‘‘ , 2-1/4'’,2-1/2'’,3'’ molds)FOB Price

76Y series Tube bending machine supports bending of tubes from 20MM to 76MM OD. Wall thickness range 20X2 to 76X8. Support angle real-time control and one angle memory accuracy compensation function

Bend range: OD 20mm ~ 76mm (1 inch to3 inch)

Maximum wall thickness: carbon steel pipe 76* 8mm

Bend radius: 2.5D ~ 3.5D

Maximum bending angle: 180 ° (180 ° need special mold combination)

PLC intelligent angle storage, manual automatic conversion at any time

Foot control to accurately control the bending stroke

Universal wheel, easy to move

Appearance color: advanced black and ivory white

Rated pressure: 250bar, working pressure: 200bar

Net weight: 600KG

Length, width and height: (1230*900*1050)mm

Voltage: 380V(50/60hz-3Hp)

Motor power: 3kw
